Nylon Triangle Tea Packaging Machine Trangle Tea Bag Machine

Nylon Triangle Tea Packaging Machine Trangle Tea Bag Machine

Yueyang Smile Packing Equipment&Material Co.,Limited is a company specialized in packing materials and related products for the coffee and tea. Since its inception in 2014, The company has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up.. The company holds the managerial idea that ‘Quality Proves Strength, Details Reach to Success’, and tries its best to do well at any aspect from each stitch, each point of procedure of manufacturing to final inspection, packing and shipment. We insist on the principle of development of 'High quality, Efficiency, Sincerity and Down-to-earth working approach' to provide you with excellent service of processing! We sincerely welcome you to visit our company or contact us for cooperation!

Description

Nylon Triangle Tea Packaging Machine



I. Performance characteristics:

1) full computer touch screen control, man-machine interface, simple and convenient operation, simple replacement products, fault display system, easy and quick maintenance.

2) The movement of the film cutting disc is controlled by the servo motor, and the running speed of the dial can be freely adjusted on the touch screen.

3) The (Siemens PLC) precisely controls the working time of the moving parts such as the trimming edge, the turntable, and the cutting blade, and can freely adjust the running speed of the host on the touch screen.

4) It can automatically complete bag making, metering and sealing.

5) with automatic alarm, such as no label, turntable overtravel, door is not closed, no roll film (optional);

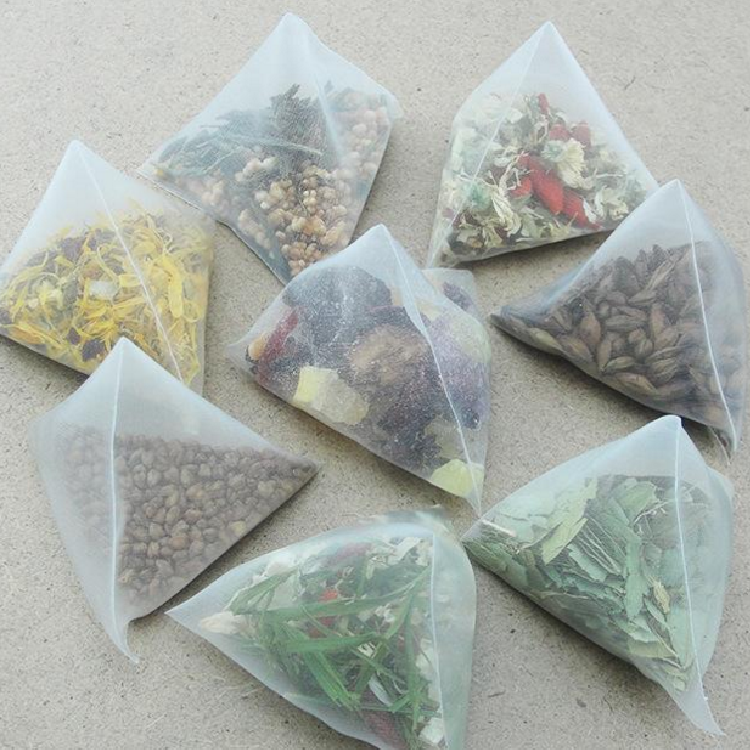

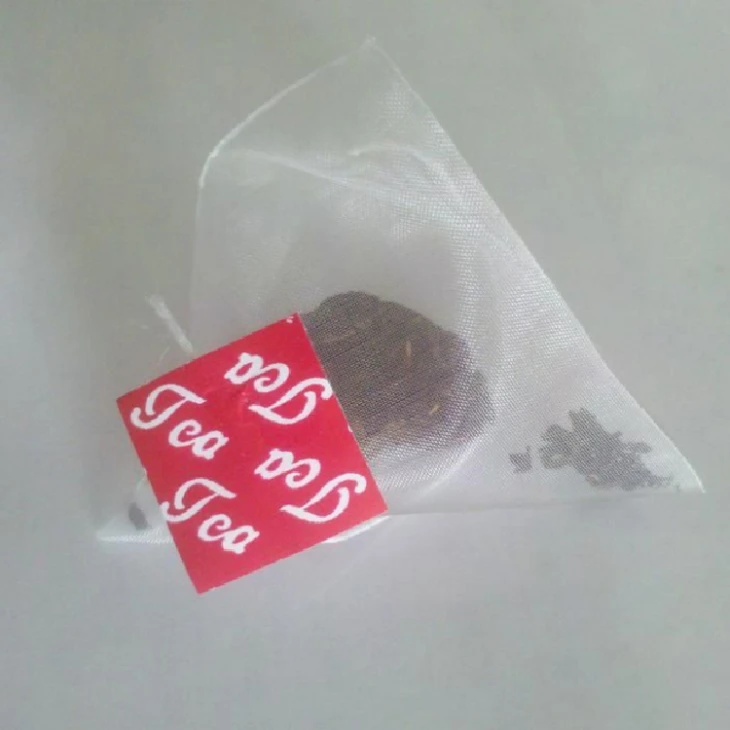

6) The advanced design ensures that the machine can adapt to different kinds of materials, such as triangular cone type and flat bag packaging. The main use cases include: herbal tea, fruit tea, original tea, coffee, Chinese herbal tea, granules and so on. It is very convenient to use, adjust, operate and maintain.

7) It can be used with a variety of different metering devices.

. Technical parameters:

1Package weight, 1-8g/bag (other specifications can be customized)

2, bag paper requirements, nylon, non-woven fabrics, corn fiber and other ultrasonic heat sealable materials

3, production speed, 30 ~ 80 bags / min

4, roll diameter, ≤ Φ350mm

5, roll paper core diameter, Φ76mm

6, air pressure, not less than ≥ 0.6Mpa (by the custom side to ensure gas supply)

7, the electrical power of the motor inside the machine, about 1.4Kw (220V)

8, the device shape, about L830 × W660 × H1522 (mm)

9, equipment weight, about 250kg

Partial configuration list

1. Human-machine interface, SMART700, Siemens, operation panel

2, PLC controller, SMARTST-40, Siemens, control program

3, photoelectric, E3X-ZD, Omron, control bag length

4, Rotary cylinder, CRB1BW63-180S, SMC, turntable

5, stepper motor, 7.5N/M, research and control, pull film motor

6, motor, RK15GN-18K, Oubang, control film delivery

7, motor, RK15GN-18K, Oubang, control of waste film

8, switching power supply, 100-24, Ming Wei, regulator

9, emergency stop switch, Tianyi,

10, start switch, Tin Yat,

11, stop the switch, Tianyi,

12, proximity switches, LJ12A3, Shanghai workers,

13, Solid State Relays, SSR-25DA, Delixi,

14, Terminal Blocks, Weidmüller,

15, air switch, EA9AN2D25, Delixi,

16, filter regulator, Yade, Taiwan, film cylinder

17, cylinder, film cutting cylinder

18, cylinder, cutter cylinder

19, cylinder, sealed cylinder

20, solenoid valve, 4V-210-08, clip, cutter

21, solenoid valve, horizontal seal cooling
